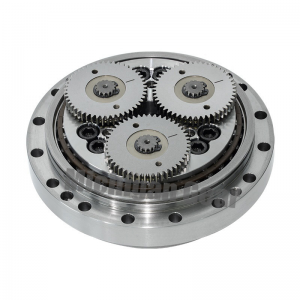

Uses of Cycloidal Pinwheel Reducers
1. Industrial Manufacturing
Cycloidal pinwheel reducers play an indispensable role in all aspects of industrial manufacturing. On automated production lines, they precisely control the speed and torque of robotic arms, ensuring the accuracy and stability of operations such as product assembly and handling. For example, in automotive manufacturing, robotic arms must quickly and precisely grasp and install parts. Cycloidal pinwheel reducers, through their efficient speed reduction transmission, enable robotic arms to achieve micron-level precision, significantly improving the quality and efficiency of automotive production.
In metalworking equipment such as machine tools and punch presses, cycloidal pinwheel reducers convert the high-speed rotation of the motor into low-speed, high-torque motion suitable for machining. This helps improve machining accuracy and surface quality while also extending the life of the equipment. Taking milling machines as an example, cycloidal pinwheel reducers can provide the milling cutter with stable rotational speed and strong cutting force, making the milling process smoother and reducing surface roughness on the workpiece.
2.Energy and Environmental Protection Industry
In the energy sector, cycloidal pinwheel reducers are widely used in renewable energy equipment such as wind power and hydropower. In wind turbines, they amplify the low-speed rotation of the rotor to the high-speed rotation required by the generator, achieving efficient energy conversion. Due to the complex environment of wind power generation, equipment reliability and durability are extremely high. Cycloidal pinwheel reducers, with their compact structure, high load capacity, and low maintenance costs, are an ideal choice for wind power generation equipment.
In the environmental protection industry, various mechanical equipment in sewage treatment plants, such as screen machines, sludge scrapers, and sludge dewatering machines, rely on cycloidal pinwheel reducers to drive them. These equipment must operate stably and for extended periods in humid and corrosive environments. The sealing performance and corrosion resistance of cycloidal pinwheel reducers effectively withstand these harsh conditions, ensuring the smooth operation of the sewage treatment process.
3.Transportation and Logistics Industry
In the transportation sector, cycloid reducers are commonly used in equipment such as port cranes and conveyor belts. Port cranes frequently perform lifting, luffing, and slewing movements. Cycloid reducers provide stable, high-torque output, ensuring safe and reliable operation under various load conditions. In automated warehouses in the logistics industry, conveyor belt systems require precise control of cargo conveying speed and position. Cycloid reducers achieve efficient and accurate cargo transportation through precise reduction ratio settings.
Reduction Ratio of Cycloid Reducers
Reduction Ratio Definition and Calculation
The reduction ratio is a key performance parameter of a cycloid reducer. It represents the ratio of input speed to output speed. Simply put, the larger the reduction ratio, the lower the output speed and the greater the output torque. The calculation formula is: Reduction Ratio = Input Shaft Speed / Output Shaft Speed. For example, if the motor's input speed is 1450 rpm, and after being reduced by a cycloidal reducer, the output speed becomes 50 rpm, then the reduction ratio of the reducer is 1450 / 50 = 29.
Common Reduction Ratio Ranges and Application Scenarios
Cycloidal reducers offer a wide range of reduction ratios to meet the needs of various operating conditions. Generally, they are classified into single-stage, double-stage, and triple-stage reduction ratios.
● Single-stage reduction: Standard speed ratios typically include 11, 17, 23, 29, 35, 43, 59, 71, and 87, while non-standard ratios include 9, 13, 15, 25, and 46. The reduction ratio range generally ranges from 1/11 to 1/87. This single-stage cycloid reducer is suitable for applications requiring relatively low speed reduction while maintaining a certain torque output, such as small conveying equipment and simple mechanical transmissions.
● Two-stage reduction: Common reduction ratios include 121, 187, 289, 391, 473, 493, 595, 731, 841, 1003, 1225, 1505, 1849, 2065, 2537, 3481, and 5133, with a range of approximately 1/121 to 1/5133. Two-stage reducers offer a wider reduction ratio and higher torque output, making them suitable for heavy machinery requiring high torque and low speeds, such as large cranes and mining hoisting equipment.
● Three-stage reducers: Cycloidal pinwheel reducers typically offer a reduction ratio range of 1/2057 to 1/446571. These three-stage reducers are suitable for specialized applications requiring extremely low speeds and high torque, such as certain precision machining equipment and propulsion systems for large ships.
Factors Influencing Reduction Ratio Selection
In practical applications, selecting the appropriate reduction ratio for a cycloidal pinwheel reducer requires comprehensive consideration. First, the load requirements, including load size and type (e.g., inertial load, resistance load), and operating conditions (e.g., continuous operation, intermittent operation). Large loads require a reducer with a larger reduction ratio to provide sufficient torque to drive the load. Second, the equipment's operating speed requirements. Based on the equipment's workflow and process requirements, the appropriate output speed and corresponding reduction ratio are determined. Furthermore, factors such as installation space and budget also influence the selection of the reduction ratio. In space-constrained situations, a compact reducer with an appropriate reduction ratio may be necessary. Cost-sensitive projects, on the other hand, require a cost-effective reduction ratio while meeting performance requirements.
In summary, cycloid reducers, with their wide range of applications and diverse reduction ratios, play a vital role in numerous industries. They can be found in industrial manufacturing, energy and environmental protection, transportation, and logistics. Understanding the applications and reduction ratios of cycloid reducers is crucial for their proper selection and use, improving the performance and efficiency of mechanical equipment. As industrial technology continues to advance, cycloid reducers will continue to innovate and improve, providing even more powerful driving force for the development of various industries.
