A planetary gearbox is a compact and efficient gear system used in various industrial applications. Known for its high torque transmission and space-saving design, it consists of a central sun gear, planetary gears, a ring gear, and a carrier. Planetary gearboxes are widely used in automation, robotics, automotive systems, and industrial machinery due to their ability to handle high loads and provide smooth operation.
Why Use Planetary Gearing?
● Planetary gear can be used in rugged applications.
● They are able to handle higher torques with more compact packages and higher shock loads.
● They are more versatile than other gears.
● Designers use planetary for high torque density, functional efficiency, and durability.
How Does a Planetary Gearbox Work?
A planetary gearbox operates by distributing torque through multiple gears. The sun gear, located at the center, receives input power and transmits it to the surrounding planet gears. These planet gears rotate around the sun gear while meshing with the internal teeth of the ring gear. The carrier holds the planetary gears in place and provides the output torque. This unique arrangement allows planetary gearboxes to achieve high efficiency and precision
Key Components of a Planetary Gearbox
● Sun Gear: Sun gear is located at the center of the assembly and meshes with the teeth of the planet gears. It receives the input for the gear set and is known as the main gear in a planetary gear set.
● Planet Gears: Planet gear runs with the motion of the sun gear. Planetary gears have one or more planet gears and control the speed of the transmission of power.
● Ring Gear: The outer ring of a planetary gear system is known as the ring gear. It contains teeth on its internal circumference and is smooth on its outside edge.
● Carrier: The carrier is portable and rotates with respect to the sun gear. It is associated with the centers of each of the planet gears to give support. The carrier has a shaft for each of the planet gears that surround the sun gear and are surrounded by the ring gear.
● Spur or Helical Gear: Construction of a planetary gear set can include spur or helical gears. The difference between the two gears is their helix angle, with spur gears having a zero-helix angle while helical gears have a helix angle of 10 to 30 degrees.
Types of Planetary Gearboxes
1. Single-Stage Planetary Gearbox
The single-stage planetary gear set has a sun gear, three planet gears, a carrier, and the ring gear. Speed and torque of the output can be modified with the different size of gears and numbers of teeth.
2. Multi-Stage Planetary Gearbox
Multi-stage planetary gear sets have two or more planetary gears to have the required speed and torque. They have the same architecture as single-stage planetary gear sets.
3. In-Line Planetary Gearbox
Input and output shafts are in a straight line and contain a single sun gear and multiple planet gears contained in a ring gear in in-line planetary gear set.
4. Offset Planetary Gearbox
Offset planetary gear sets are known as parallel shaft planetary gears. They have the input and output shafts placed in an offset or parallel position.

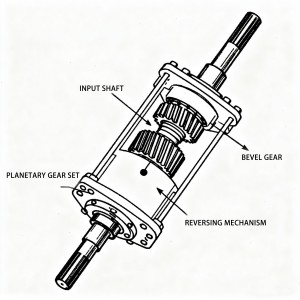

5. Right-Angle Planetary Gearbox
Input and output shafts are arranged at right angles with each other in right-angle planetary gear sets. Rotation of the planet gears transfers power to a right-angle bevel gear set that is connected to the output shaft.
6. Harmonic Drive Planetary Gearbox
Harmonic drive planetary gear sets are also known as strain wave gearboxes and wave generator gearboxes. Harmonic drive planetary gear sets have zero backlash, high precision, and high torque density.
7. Simpson Planetary Gearbox
The Simpson planetary gear set has a single sun gear and two or three sets of planetary carriers that are related in a series. It has a structure with three forward gears, one reverse gear, and a neutral.
8. Ravigneaux Planetary Gearbox
This gear set is an advancement of the Simpson planetary gear set and includes two sun gears, two ring gears, and two sets of planet gears on a single carrier.

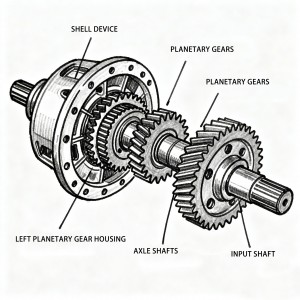

9. Differential Planetary Gearbox
This gear set has a large ring gear, a carrier, two planet gears, and a sun gear. The ring gear is connected to the shaft of one of the wheels while the sun gear is attached to the other wheel, which makes it possible to change the rotation of the drive shaft to drive the wheels.
Advantages of Planetary Gearbox
● High Torque Density: Can transmit high torque within a compact structure.
● Efficiency: Low energy loss due to balanced power distribution.
● Durability: Capable of handling heavy loads and long operating hours.
● Versatility: Suitable for various industrial and automation applications.
● Compact Design: Saves space while delivering superior performance.
● Smooth Operation: Reduces vibration and noise.
Applications of Planetary Gearboxes
Planetary gearboxes are used across multiple industries due to their adaptability and efficiency:
● Industrial Automation: Industrial automation applications include industrial valve drive systems, door valve drive systems, vending machine systems, electric screwdriver systems, etc.
● Smart Home Devices: Planetary gears are widely used at smart homes for hand-held washing machines, vacuum cleaners, baby strollers, lifting sockets, sweeping robots, etc.
● Intelligent Communication: Intelligent communications include communication base station ESC, base station signal electric tilt actuator, base station smart cabinet lock actuator, etc.
● Consumer Electronics: Planetary gears are used in consumer electronics products such as mobile phone lifting camera actuators, mobile phone photo printers, etc.
● Smart Car: Applications include car tail drive systems, EPB drive systems, car large Light regulator systems, automotive dashboard systems, automotive electric tailgate drive systems, etc.
● Aerospace & Defense: Satellite positioning systems, precision control mechanisms.
● Medical Equipment: Surgical robotics, diagnostic machines.
Conclusion
A planetary gearbox is an efficient and durable solution for transmitting torque in industrial and mechanical systems. Its compact design, high torque capability, and adaptability make it a preferred choice across industries. When selecting a planetary gearbox, it is essential to work with a trusted manufacturer to ensure reliability and long-term performance.
