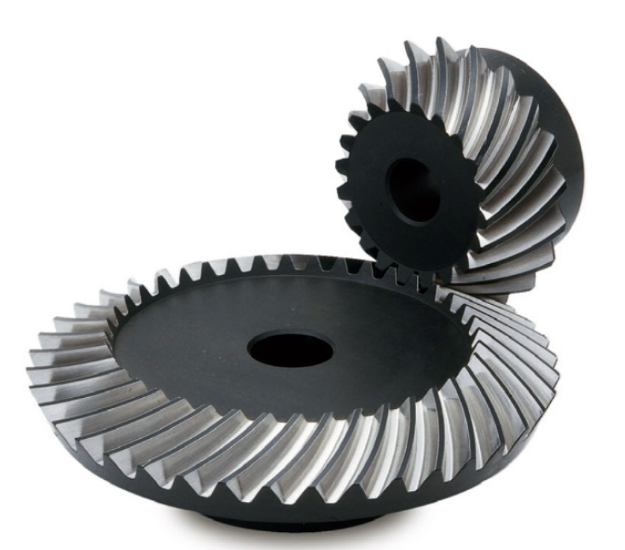

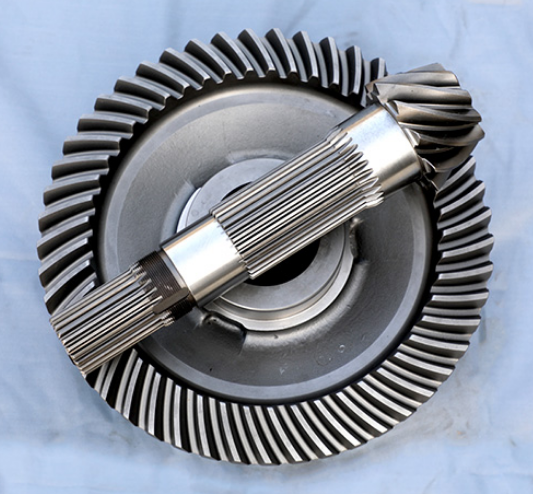

Spiral bevel gears are a type of bevel gear with curved, oblique teeth that provide smoother and quieter operation compared to straight bevel gears. They are widely used in applications requiring high torque transmission at right angles (90°), such as automotive differentials, helicopter transmissions, and industrial machinery.
Key Features of Spiral Bevel Gears
1.Curved Teeth Design
● Teeth are spirally curved, allowing gradual engagement for reduced noise and vibration.
● Better load distribution compared to straight bevel gears.
2.High Efficiency & Strength
● Can handle higher speeds and torque loads.
● Used in heavy-duty applications like truck axles and wind turbines.
3.Precision Manufacturing
Requires specialized machines (e.g., Gleason spiral bevel gear generators) for accurate tooth geometry.
Manufacturing Methods (Gleason Process)
Gleason Corporation is a pioneer in spiral bevel gear manufacturing, using two main methods:
1. Face Hobbing (Continuous Indexing)
Process: Uses a rotating cutter and continuous indexing for high-speed production.
Advantages: Faster, better for mass production (e.g., automotive gears).
Gleason Machines: Phoenix series (e.g., Gleason 600G).
2. Face Milling (Single-Indexing)
Process: Cuts one tooth at a time with high precision.
Advantages: Superior surface finish, used for aerospace and high-precision gears.
Gleason Machines: Gleason 275 or Gleason 650GX.
Applications of Spiral Bevel Gears
| Industry | Application |
| Automotive | Differentials, axle drives |
| Aerospace | Helicopter transmissions, jet engines |
| Industrial | Heavy machinery, mining equipment |
| Marine | Ship propulsion systems |
| Energy | Wind turbine gearboxes |
Gleason’s Spiral Bevel Gear Technology
GEMS Software: Used for design and simulation.
Hard Finishing: Grinding (e.g., Gleason Phoenix® II) for ultra-precision.
Inspection: Gear analyzers (e.g., Gleason GMS 450) ensure quality.
