I define a miter gear as a conical bevel gear operating in pairs at a 1:1 ratio. These components change rotation direction by 90 degrees without altering speed or torque. I select them over standard bevel gears when systems need directional changes without speed reduction. Industrial machinery, robotics, and conveyors rely on them.
Key Takeaways
●Miter gears redirect rotation 90 degrees while keeping speed and torque constant.
●Choose spiral miter gears for quiet performance and high speeds in heavy-duty machinery.
●Set correct backlash and keep lubricants clean to prevent early machine wear.
Miter Gear Fundamentals and Tooth Designs
I rely on paired gears with identical tooth counts and matching diametral pitches to establish a true 1:1 drive velocity. A Miter Gear set requires both gears to share the exact same pitch, pressure angle, and tooth count. The equation d = Np / Pd defines the pitch diameter for the pinion, while D = Ng / Pd defines the pitch diameter for the gear. Because Np equals Ng, both pitch diameters match completely. Equal pitch diameters create equal pitch-line speeds. This geometry guarantees a precise 1:1 gear ratio without changing the shaft speed.
Only Miter Gears of the same number of teeth, pitch, and pressure angle will operate together.
Manufacturers build these paired components under strict standards to ensure proper tooth geometry and load capacity.
| Standard | Scope | Relevance to Miter Gears |
|---|---|---|
| ANSI/AGMA ISO 1328-1 | Gear accuracy grades A2 to A11 | Defines tooth tolerances for miter gear applications |
| AGMA ISO 23509-A | Bevel and hypoid gear geometry | Establishes geometric reference for gear tooth design |
| ISO 10300-1/-2/-3 | Bevel gear load capacity calculation | Provides engineering basis for surface durability and torque ratings |

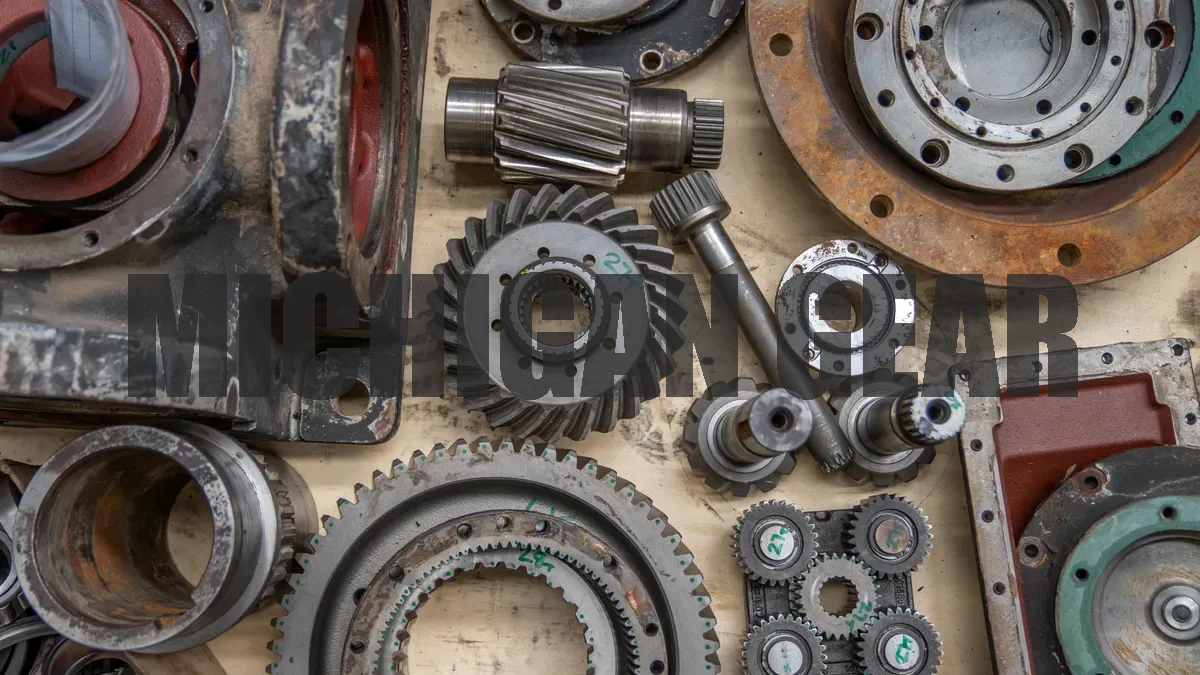

Straight and Spiral Miter Gears
I choose between straight and spiral tooth designs based on my application needs. Straight teeth feature full-width line contact. They offer high operating efficiency between 98% and 99% at low speeds. However, full-width line contact creates sudden impact at high speeds, which reduces efficiency and increases noise.
Spiral teeth feature curved designs with moving point contact. This geometry allows progressive tooth engagement. Spiral teeth maintain 98% to 99% efficiency even at high operating speeds. They carry higher loads, produce less noise, and deliver smooth motion in high-speed machinery.
| Feature | Straight Tooth | Spiral Tooth |
|---|---|---|
| Tooth Contact | Full-width line contact | Moving point contact on curved teeth |
| High-Speed Efficiency | Declines due to tooth impact | Remains high at 98% to 99% |
| Load Capacity | Ideal for low-speed systems | Superior for high-speed and high-torque drives |
| Noise Level | Higher noise under speed | Smooth and quiet operation |
Spiral teeth create directional axial thrust forces like a wedge. Rotation direction and spiral hand determine whether thrust pulls the gears together or pushes them apart. System housings must absorb these loads.
1:1 Ratio and 90-Degree Shaft Angles
I mount these gears on intersecting shafts that form an exact 90-degree angle. Each gear features a 45-degree pitch cone angle. The gear axis, plane-of-action axis, base-cone apex, and plane-of-action apex must intersect at one common point.
Pinion mounting-distance error shifts tooth contact and can make backlash readings misleading because pinion tooth thickness tapers with position.
An axial mounting-distance shift alters circumferential backlash according to the formula backlash change = 2 x axial shift x tan(pressure angle) x sin(pitch angle). Precise axial positioning ensures central tooth contact and prevents premature gear fatigue.
Material Selection and Maintenance Best Practices
I select gear materials based on specific system load constraints and environment conditions. Hardened steel handles heavy industrial wear in high-load setups. Cast iron provides reliable moderate strength for standard drives. Plastics suit light-duty, self-lubricating setups where systems require low noise and quiet operation.
Proper lubrication protects these gear materials during operation. Fluid viscosity and contamination control directly affect component longevity.
| Contamination Control Practice | Operational Evidence | Effect on System Life |
|---|---|---|
| Purchasing clean lubricants | As-supplied oils differ up to 1,000x in particle concentration; 82% of machine wear is particle-induced | Reduces initial wear and prevents early surface damage |
| Fine oil filtration | Reducing filter size from 40 µm to 3 µm increases average life sevenfold | Removes abrasive particles before pitting occurs |
| Water ingress prevention | Even 1% water in oil can reduce bearing life by up to 90% | Prevents surface rust and rapid contact-fatigue failure |
I monitor oil cleanliness regularly to catch contamination early. Clean desiccant breathers and intact seals prevent abrasive dust ingress. Dry indoor storage preserves fresh lubricants from humidity degradation.
Steel, Iron, and Plastic Material Options
Material choice dictates how a Miter Gear set responds to operational stress and ambient thermal shifts. Steel gears survive high torque loads, but they require robust oil films to prevent scuffing. Cast iron absorbs operational vibrations effectively in moderate power systems. Plastic gears operate cleanly without liquid lubricants, but they carry lower torque limits.
I select lubricants with strong thermal stability for high-power density applications. Compact sumps demand high extreme-pressure performance and foam control. Modern synthetic lubricants prevent oxidation and sludge formation under heavy thermal loads.
Backlash Control and Thrust Bearing Setup
Precise assembly ensures correct tooth alignment and prevents premature gear fatigue. Conical gear geometry generates outward axial thrust forces during power transmission. I install suitable thrust bearings or preloaded tapered roller bearings to absorb these axial loads safely.
I follow a strict setup sequence to establish correct tooth mesh:
1.Set the pinion shim thickness to establish proper mounting distance.
2.Preload the pinion bearings and gear bearings.
3.Measure backlash using a dial indicator to confirm clearance.
4.Apply Prussian Blue marking grease to inspect the contact pattern.
5.Adjust shims to center the contact pattern toward the toe at roughly 50% of tooth height and length.
I maintain backlash between 0.010 and 0.012 inch for new gears. I set backlash between 0.010 and 0.014 inch for used gears. Moving the pinion shifts the contact pattern along the tooth length. Moving the gear shifts the pattern along the tooth height. Proper backlash control prevents binding and minimizes tooth impact forces.
I use a Miter Gear to redirect mechanical motion at 90 degrees while maintaining input speed. Straight tooth profiles offer lower manufacturing costs for low-speed systems. Spiral teeth reduce noise by up to 16 dB and increase load capacity. I select appropriate materials and precise axial thrust mountings to maximize overall equipment reliability.
FAQ
What is the main difference between miter gears and standard bevel gears?
I select miter gears to change shaft direction by 90 degrees at a 1:1 ratio. Standard bevel gears alter operating speed and torque between intersecting shafts.
Why do I choose spiral miter gears over straight tooth designs?
I use spiral miter gears for high-speed systems. Curved teeth offer smoother engagement, carry higher torque loads, and lower operating noise by up to 16 dB.
What backlash clearance do I set for new miter gear installations?
I maintain backlash between 0.010 and 0.012 inch for new gear setups. Proper backlash prevents binding and protects gear teeth from premature fatigue.
