A standard miter gear fails prematurely or does not fit unique spatial constraints in your machine. A miter gear is a specialized bevel gear with a 1:1 ratio that transmits power between intersecting shafts at a 90-degree angle. What happens when off-the-shelf options cannot meet your needs? Custom miter gear manufacturing offers tailored specifications to solve these problems.
Key Takeaways
- Custom miter gears solve problems when standard options cannot handle noise, high loads, or unusual bore sizes. Work with a manufacturer early to define your exact needs.
- Choose between straight and spiral teeth based on your speed and load. Spiral teeth run quieter and carry more load, but they cost more to make.
- Pick the right material for your gear. Steel works for heavy loads, stainless resists corrosion, and plastic cuts noise. Each choice changes performance and cost.
Miter Gear Basics and Limitations
Defining the 1:1 Ratio and 90-Degree Angle
Before I discuss customization, I need to clarify what makes a miter gear unique. Unlike other bevel gears, a miter gear pair transmits power between shafts that intersect at exactly 90 degrees. The transmission ratio stays fixed at 1:1, meaning both gears rotate at the same speed. This constraint creates specific geometric rules you cannot change.
The geometry follows strict parameters. Both gears must have an equal number of teeth. Their pitch circle diameters match perfectly. Each gear carries a pitch cone angle of 45 degrees, which allows the two to mesh correctly at the right angle. I find it helpful to visualize these requirements in a simple table:
| Geometric Parameter | Miter Gear Specification |
|---|---|
| Shaft angle | Fixed at 90° |
| Transmission ratio | Always 1:1 |
| Tooth count relationship | Equal on both gears |
| Pitch cone angles | Equal, typically 45° each |
Tooth configuration adds another layer of choice. Straight miter gears have teeth cut parallel to the shaft axis. They engage suddenly, which creates noise at higher speeds. Spiral miter gears feature curved teeth that engage gradually. This design runs smoother and quieter, though manufacturing costs rise. I recommend spiral options for high-speed applications where noise reduction matters.
When Standard Options Fail
Standard miter gears work well for many basic machines. However, I frequently encounter situations where off-the-shelf parts simply cannot perform. Noise becomes a serious problem when operating speeds climb. Straight-cut standard gears produce whine that exceeds acceptable workplace limits.
Load capacity presents another common failure point. A standard gear might handle moderate torque, but heavy industrial equipment often demands more strength than catalog parts provide. I have seen gears strip their teeth entirely when engineers underestimated the actual load.
Bore size mismatches frustrate many designers. Standard gears come with fixed bore diameters. When your shaft measures something unusual, you face two poor choices: modify the shaft or rework the gear. Both options introduce weakness and cost.
Material limitations also drive customization. Standard gears typically use basic steel grades. Applications requiring corrosion resistance or reduced weight need specialized materials that standard catalogs rarely stock. These real-world constraints push me toward custom manufacturing, where I can specify every parameter precisely.
Custom Miter Gear Manufacturing Process
From Design to CAD Modeling
Every custom miter gear begins with your specifications. I capture the critical parameters first: pitch, tooth count, pressure angle, and bore size. You can submit a technical drawing or a sample in standard CAD formats. Some clients prefer to sign a confidentiality agreement before sharing proprietary designs. That step protects your intellectual property from the start.
The workflow follows a clear sequence. First, I review your drawing and conduct a Design for Manufacturability (DFM) analysis. This check typically completes within 24-48 hours. I verify that your tolerances are achievable and that the heat treatment specification matches the material. Second, I provide a quotation with transparent costing and defined logistics terms. Third, we agree on lead times. Fourth, I produce a prototype with full dimensional inspection and deliver an inspection report. Fifth, you approve the prototype or request revisions. Sixth, mass production begins with batch inspection, anti-rust treatment, and shipping.
Translating your specifications into a precise CAD model demands attention to geometry. The gear blank forms as a revolved body. I then define a single tooth space profile on a sketch plane positioned normal to the pitch cone surface. For a miter gear with a 1:1 ratio and 90-degree shaft angle, the pitch cone angle is exactly 45 degrees. The loft line and sketch plane must sit precisely on the pitch cone, not merely on the outer face of the blank.
The tooth profile itself differs from standard spur gears. Accurate working miter gears use an octoid profile rather than a simple involute. I construct this by defining spline points using tangential construction lines at even angular intervals. Each point's distance comes from the formula: radius multiplied by the angle in radians. A spreadsheet handles these calculations efficiently.
Several software tools support this work. KISSsoft offers professional gear design with extensive analysis capabilities. SOLIDWORKS provides powerful 3D modeling with motion simulation. Gear App and Gear Generator deliver parametric design options online. Some engineers use MATLAB for automating parametric calculations, then import the data into Creo Parametric for final modeling.
Machining and Heat Treatment Steps

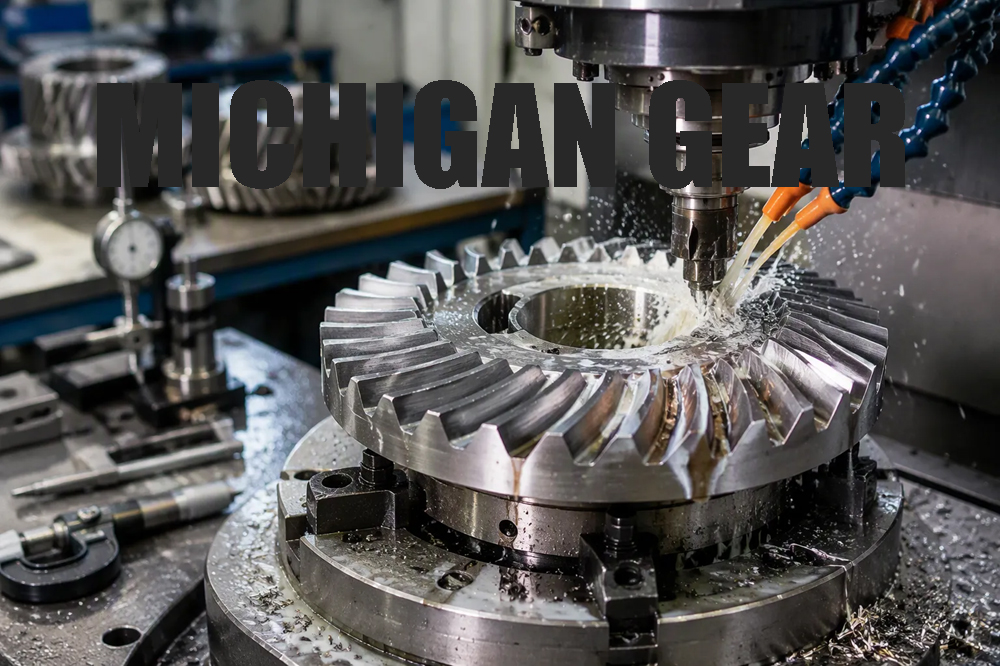

Once the CAD model passes review, precision manufacturing begins. Dedicated gear generators cut the teeth using methods like hobbing, milling, or grinding. Each approach offers distinct advantages. Hobbing works efficiently for production runs. Milling provides flexibility for complex geometries. Grinding achieves the tightest tolerances for high-precision applications.
Heat treatment transforms the gear's mechanical properties. Several processes exist, each suited to different requirements:
- Through hardening heats and quenches the entire gear, creating a martensitic structure that improves overall hardness and strength. This suits medium and high carbon steels.
- Carburizing diffuses carbon into the surface of low-carbon steel at high temperature. The result is a hard, wear-resistant outer case with a tough, ductile core. This process also induces beneficial compressive stresses that improve fatigue life.
- Nitriding diffuses nitrogen into the surface, producing a very hard, smooth case with minimal distortion.
- Induction hardening uses high-frequency current to selectively harden gear teeth, minimizing distortion while leaving the core tough.
Quality assurance follows every manufacturing step. Coordinate measuring machines verify dimensional accuracy against your specified tolerances. Hardness testing confirms the heat treatment achieved the intended properties. After inspection, I apply rust-preventative treatment and package the gears for delivery. Post-sales technical support remains available if questions arise during installation or operation.
Key Design Considerations
Tooth Profile and Pressure Angle
The tooth profile you choose shapes every performance aspect of your gear set. Straight teeth engage abruptly across their full face width. This creates impact forces that translate into noise and vibration. Spiral teeth engage gradually with progressive contact. That smooth engagement minimizes impact and produces quieter operation. I see this difference matter most at higher speeds where straight teeth generate unacceptable whine.
Load capacity follows the same pattern. Straight teeth carry lower loads because they rely on instantaneous line contact. Spiral teeth distribute the load across a larger area for a longer duration. Their higher contact ratio means more teeth share the workload simultaneously. This reduces stress concentration at any single point. Spiral designs also introduce axial thrust forces, so your bearing system must handle that additional complexity.
| Aspect | Straight Teeth | Spiral Teeth |
|---|---|---|
| Engagement | Abrupt across full face width | Gradual, progressive contact |
| Noise & Vibration | More noise, especially at high speeds | Quieter due to smooth engagement |
| Load-carrying capacity | Lower – instantaneous line contact | Higher – distributed load over larger area |
| Contact ratio | Lower | Higher – more teeth in mesh |
| Complexity & Cost | Simpler, more cost-effective | More complex, costly to manufacture |
| Suitable applications | Low-speed, low-load | High-speed, high-load, noise-sensitive |
Pressure angle adds another design variable. Standard options typically sit around 20 degrees. For high-speed, light-load applications, I recommend a smaller pressure angle between 16 and 17.5 degrees. This reduces vibration and noise considerably. The trade-off involves reduced tooth strength, so you cannot use smaller angles for heavy loads.
Backlash, Ratio, and Load Capacity
The 1:1 ratio stays fixed for any miter gear. You cannot change that fundamental geometry. However, you retain full control over backlash and load capacity through customization.
Backlash represents the clearance between mating teeth. Tight backlash delivers precision positioning for servo-driven systems. Loose backlash accommodates thermal expansion in high-temperature environments. I help clients determine the right balance based on their operating conditions. Too little backlash causes binding when components heat up. Too much creates objectionable slop in reversing applications.
Load capacity depends primarily on material selection and tooth size. Alloy steel like AISI 4340 delivers high strength and fatigue resistance for demanding industrial scenarios. Standard steel such as AISI 1045 offers moderate capacity with lower hardness. Hardened steel like AISI 4140 improves wear resistance and stress handling beyond standard grades. Polymer composites like Nylon 66 run quietly but cannot handle heavy-duty loads.
For high-speed, light-load applications, a smaller pressure angle (16°–17.5°) is typically recommended to reduce vibration and noise.
I always ask clients about their actual operating envelope before recommending materials. A gear that works perfectly at moderate speeds may fail quickly under continuous peak torque. Tooth size also matters. Larger teeth distribute stress more effectively, but they require more space and increase manufacturing cost. I balance these factors against your spatial constraints and budget.
The customization process lets you specify every parameter precisely. You decide the tooth profile, pressure angle, backlash allowance, and material grade. Each choice affects noise, strength, durability, and cost. I guide you through these decisions based on your specific application requirements.
Material Options for Miter Gears
Steel and Stainless Steel Choices
Steel dominates heavy-duty industrial applications for good reason. Alloy steels like AISI 4340 deliver exceptional strength and fatigue resistance. I recommend this grade when your equipment runs under continuous peak torque or shock loading. Standard carbon steels such as AISI 1045 offer moderate capacity at lower cost. These work well for general-purpose machinery where extreme conditions rarely occur.
Hardened steel grades like AISI 4140 improve wear resistance significantly. The heat treatment processes I described earlier transform these alloys into tough, durable components. For most industrial miter gear applications, I start with steel and adjust the grade based on your specific load profile.
Stainless steel solves a different problem entirely. Food processing equipment demands corrosion resistance because washdowns happen daily. Marine environments attack standard steel relentlessly. I specify stainless steel when moisture, chemicals, or sanitizing agents contact the gear regularly. The trade-off involves higher material cost and slightly lower strength compared to hardened alloy steels. For many clients, that cost proves worthwhile when equipment failure means expensive downtime.
Brass, Plastics, and Other Alternatives
Brass offers distinct advantages for light-duty applications. I choose brass when corrosion resistance matters but loads remain modest. It machines easily, runs quietly against steel mating gears, and provides natural lubricity. Instruments, small actuators, and decorative mechanisms often use brass miter gears.
Engineered plastics solve noise problems that metal cannot address. Plastic gears reduce noise by deforming under load. This deformation compensates for gear misalignment and small tooth errors that would otherwise cause impacts and running noise in metal gears. The softer material absorbs these impacts, making plastic gears quieter than metal gears of even higher AGMA quality classes.
Real-world examples demonstrate this benefit clearly:
- A home healthcare bed manufacturer switched to acetal plastic gears and significantly reduced operating noise.
- Maytag engineers eliminated steel gear noise entirely by redesigning their washer transmission around plastic gears. They also reduced weight by 13 pounds and eliminated 42 parts.
- A major automotive supplier replaced metal seat adjuster gears with acetal copolymer gears, eliminating squeaks in motorized car seats.
I consider plastic when weight reduction matters or when production volumes justify injection molding costs. Each material choice changes your gear's performance envelope. I help you match the material to your actual operating conditions rather than over-specifying for hypothetical scenarios.
Quality Control and Testing Methods
Inspection and Tolerance Verification
Precision measurement tools form the backbone of my quality assurance process. I use coordinate measuring machines (CMM) to verify every critical dimension on each custom miter gear. These devices probe the tooth profile, pitch spacing, and runout with remarkable accuracy. I compare each measurement against the tolerances we agreed upon during the design phase.
Industry standards guide my inspection criteria. The American Gear Manufacturers Association (AGMA) publishes detailed specifications for gear accuracy. The International Organization for Standardization (ISO) offers similar guidelines. I reference both systems when establishing acceptable limits for your gear. Each standard defines classes that range from commercial-grade to precision-grade accuracy.
I check several parameters during inspection. Tooth profile determines how smoothly your gear meshes with its partner. Pitch spacing affects load distribution across multiple teeth. Runout measures how much the gear wobbles as it rotates. Any deviation beyond the specified tolerance means I reject the part and remanufacture it.
Certifications and Performance Validation
Reputable manufacturers provide documentation that proves quality. I supply inspection reports with every batch of gears. These reports list measured values alongside the specified tolerances. You can verify compliance without needing your own measurement equipment.
Material certifications trace the steel back to its original mill. Heat treatment records confirm the hardening process achieved proper depth and hardness. Together, these documents give you confidence in the final product.
Performance testing validates real-world behavior. I conduct noise testing to measure sound levels during operation. Load testing confirms the gear handles its rated torque without failure. These tests simulate actual operating conditions rather than theoretical calculations.
A gear that passes dimensional inspection may still fail in service. Performance testing bridges that gap between drawing specifications and real-world demands.
I recommend requesting these certifications before placing a production order. A manufacturer who willingly shares test data demonstrates confidence in their work. This transparency protects your investment and ensures your miter gear performs reliably throughout its service life.
Selecting a Miter Gear Manufacturer
Evaluating Experience and Capabilities
Choosing the right partner starts with a careful review of their production history. I ask about the types of gears they manufacture regularly. A shop that cuts spur gears daily may lack the specialized tooling for bevel gear production. I also request examples from their past projects. Agriculture, trucking, construction, and electric vehicle experience tells me they understand demanding environments.
The evaluation table below guides my initial screening:
| Evaluation Point | What to Confirm |
|---|---|
| Gear capability | Types of gears produced (spur, helical, bevel, worm, spline shaft) |
| Application experience | Past projects in agriculture, trucks, construction machinery, EVs |
| Process route | Steps from forging to final inspection |
| Heat treatment | Methods (carburizing, nitriding, induction hardening) and target hardness |
| Inspection | Checks on tooth profile, lead, pitch, runout, contact pattern |
| Custom support | Drawing review, sample measurement, OEM number matching |
| Repeat orders | Process records, traceability, batch consistency |
| Communication | Fast RFQ response, clear technical feedback |
I look for value-added services beyond basic machining. Design assistance with CAD modeling and manufacturability analysis saves me time. Prototyping services let me test a sample before committing to full production. Assembly capabilities and quality compliance with ISO standards add convenience. A manufacturer who offers these extras becomes a true engineering partner rather than a simple supplier.
Balancing Lead Times and Costs
Custom miter gear production takes time. Small batches require more setup per piece, driving costs upward. Complex designs with tight tolerances demand additional machining passes and inspection steps. I plan for realistic lead times rather than expecting catalog-style delivery speeds.
I request quotes from multiple suppliers before deciding. Each quotation reveals their pricing structure and scheduling capacity. I compare not just the bottom line but also their technical feedback. A supplier who asks thoughtful questions about my application understands the nuances of gear design. That engagement often predicts better manufacturing outcomes.
The cheapest quote rarely delivers the best value. I weigh experience, communication quality, and production capability alongside price.
I also discuss prototype timelines separately from production runs. Early collaboration with my chosen manufacturer helps me refine the design before expensive tooling begins. Their engineering input during this phase prevents costly revisions later. This partnership approach ultimately saves both time and money across the entire project lifecycle.
Standard Miter Gear options fail when demands exceed catalog limits. I walked through the full customization journey: design modeling, machining, heat treatment, material selection, and quality verification. Success depends on clear specifications and thorough design work. Don't fear custom manufacturing. This Miter Gear approach offers optimal performance for your unique application. Consult experienced gear manufacturers early to leverage their expertise.
FAQ
How long does a typical custom miter gear order take?
Lead times vary with complexity. Simple designs with standard materials might ship within four to six weeks. Complex geometries or specialized heat treatment extend that timeline considerably. I recommend discussing your deadline during the quotation phase.
Can I order a single prototype before committing to full production?
Yes. Most manufacturers, including my operation, offer prototype services. I produce one gear with full dimensional inspection first. You test it in your application. Once approved, I proceed with the production run.
What information should I prepare before contacting a manufacturer?
Gather your shaft diameter, required tooth count, and operating speed. Note the load conditions and environment. Include any existing drawings or samples. This information helps me provide accurate pricing and feasibility feedback quickly.
